Home - Products -Video Wall Controller

LM-SH21

LINK-MI LM-SH21 2x1 HDMI+VGA+CVBS 1080p HD Video Synthesizer

Introduction:

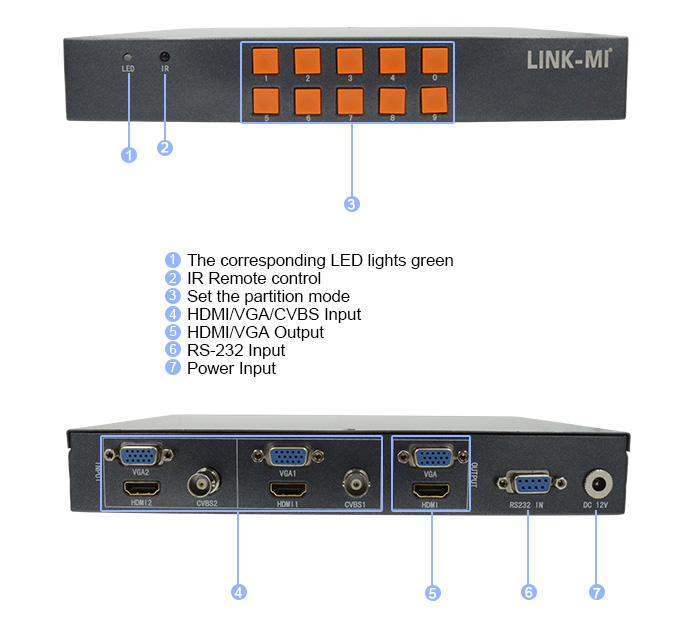

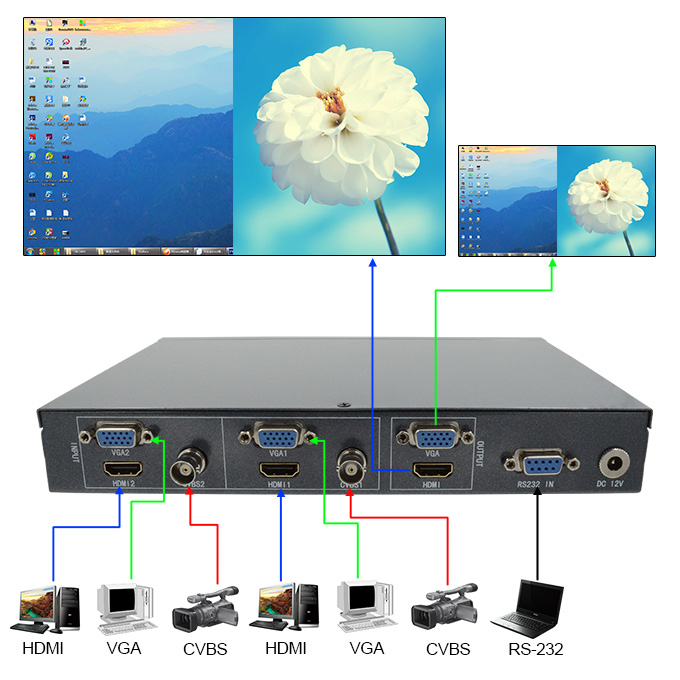

1. With 2x HDMI in, 2x VGA in , 2x CVBS in;
1x HDMI out, 1x VGA out.
2. Pure hardware architecture.
3. Faroudja image processing technology.
4. High precision sampling of the analog input signal.
5. Strong data processing ability.
6. Control function: remote, front buttons, RS232.
7. Support a variety of formats and input and output ultra-high resolution, up to 1920x1080@60Hz.

Description

Specification

Input interface

2 numbers CVBS/VGA/HDMI ,

Input resolution

Support 480I~1080PHDMI and VGA signal support 640x480 to 1920x1080

 Deep Color

24bit,16.7M

Zoom

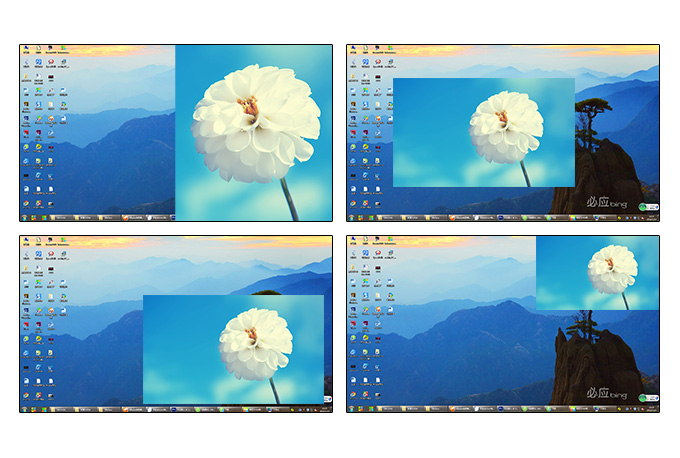

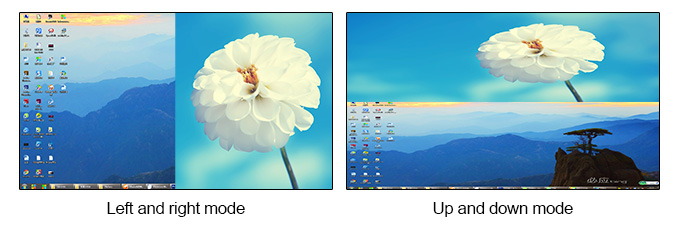

Anywhere, Any size

HDMI

HDMI1.0/ HDCP1.3/ DVI1.0

CVBS

NTSC, PAL or SECAM

Distinguish

Auto

Output interface

HDMI and VGA

Output

1024x768 ,1280*720,1280*1024, 1920x1080 @60HZ

Control

RS232,Remote,front panel button

Control software

Quarsystem

Input voltage

DC12V

power

15W

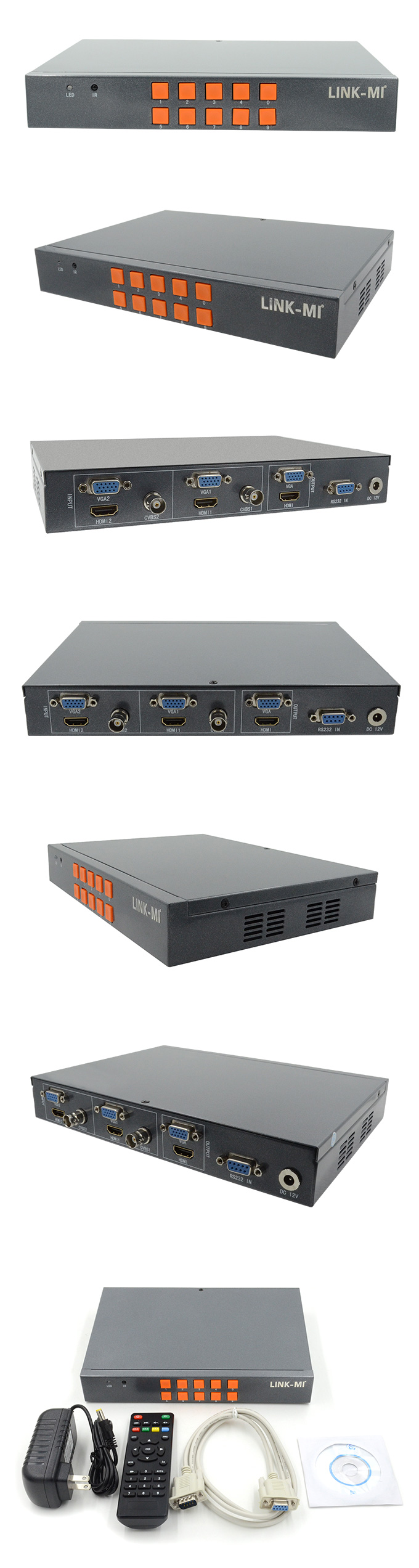

Packing Contents

1.Main Unit. 1pcs HD Video Synthesizer

2. 1pcs Power Adapter

3. 1pcs Remote Controller

4. 1pcs CD disk

5. 1pcs User Manual
